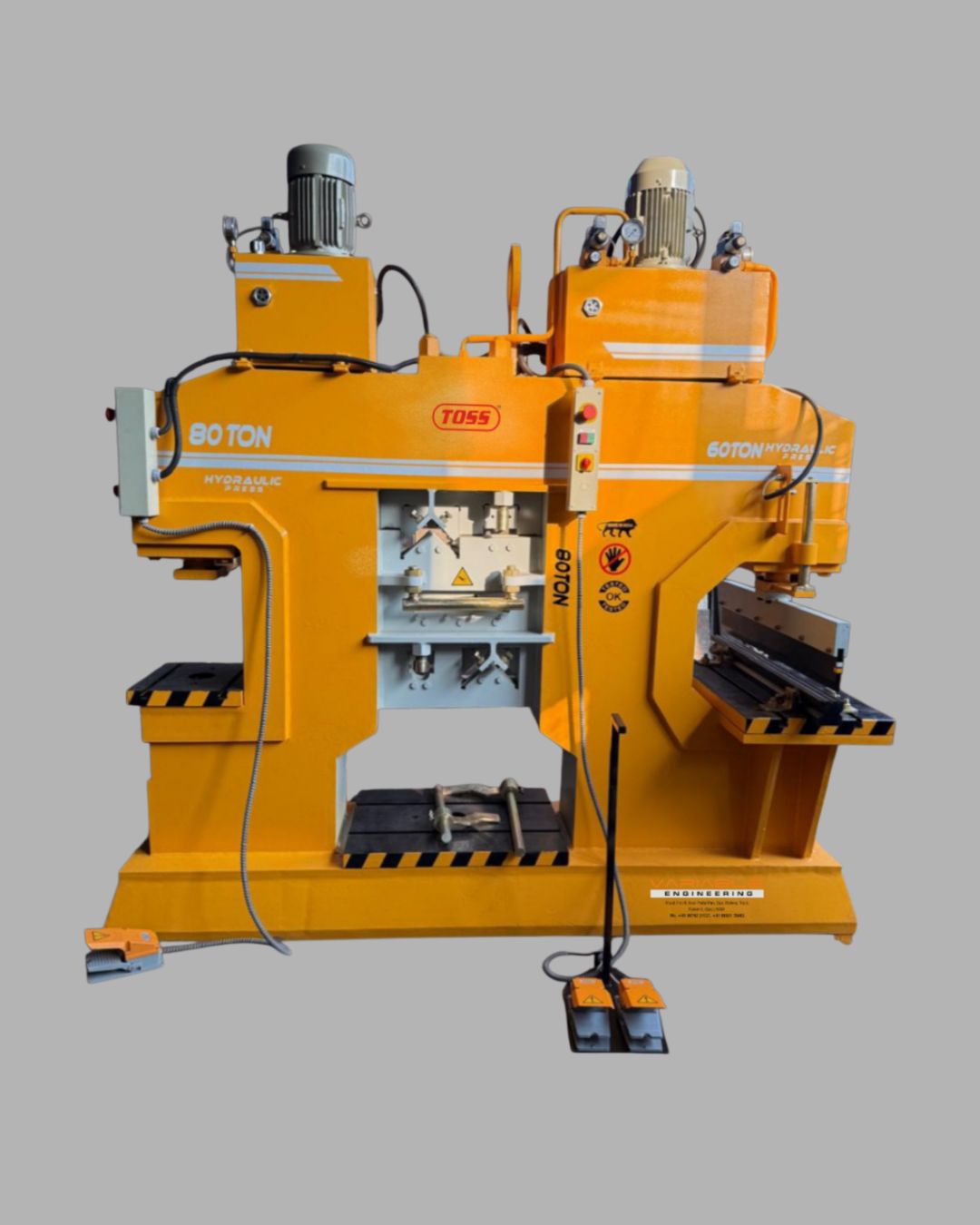

Hydraulic Multi Cutter SPM Machine
A Hydraulic Multicutter Machine is a versatile industrial cutting system designed to process multiple types of metal profiles such as angles, flats, round bars, and channels. It is widely used in fabrication workshops and manufacturing industries where high cutting force and operational efficiency are required.
Machine Overview
Hydraulic multicutter machines are often designed as multi-station “ironworker” systems, allowing operators to perform various cutting operations without changing tools. These machines use hydraulic pressure to generate powerful cutting force, making them suitable for heavy-duty industrial fabrication.
Main Applications
- Metal fabrication workshops
- Structural steel processing
- Industrial equipment manufacturing
- Construction and engineering industries
- Heavy-duty metal cutting operations
Technical Specifications (Typical)
| Feature | 60 Ton Model | 80–100 Ton Model |
|---|---|---|
| Main Capacity | 60 Tons | 80 – 100 Tons |
| Angle Cutting | 100 × 100 × 10 mm | 150 × 150 × 12 mm |
| Flat Bar Cutting | 300 × 20 mm | 400 × 25 mm |
| Round Bar Cutting | 40 mm | 50 – 55 mm |
| Channel Cutting | 100 × 50 mm | 150 × 75 mm |
| Motor Power | 5 HP – 7.5 HP | 10 HP – 15 HP |
| Voltage | 220V / 440V (3 Phase) | 440V (3 Phase) |
| Machine Weight | 1600 – 1750 kg | 2500 – 3000 kg |
Key Features
- Multi-Station Design: Multiple cutting stations allow angle cutting, bar shearing, and punching operations.
- High Hydraulic Force: Provides powerful and consistent cutting performance for heavy materials.
- Versatile Operation: Capable of handling flat bars, round bars, square bars, and structural sections.
- Automation Options: Available in semi-automatic or PLC-controlled fully automatic models.
- Safety Protection: Includes overload protection systems and emergency stop switches.
Types of Hydraulic Multicutter Machines
| Type | Application | Key Feature |
|---|---|---|
| Fabrication Multicutter (Ironworker) | Structural steel cutting | Multi-station cutting system |
| Stone / Granite Multicutter | Stone processing industries | Multi-blade cutting system |
| Portable Hydraulic Multicutter | Construction and demolition | Compact handheld cutting tool |
Safety Note
Operators should ensure proper material positioning and follow all safety guidelines while operating the machine. Protective gloves, safety goggles, and emergency stop access are essential during operation.
