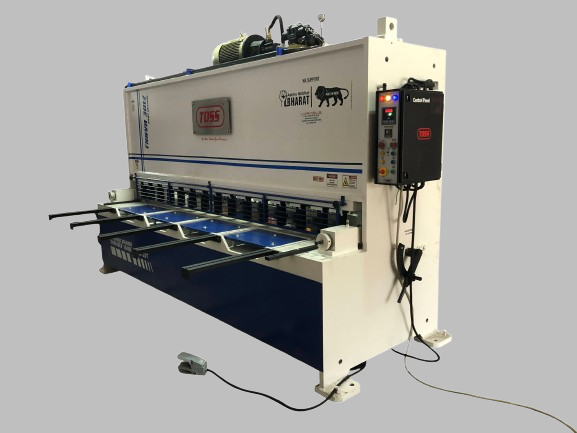

Hydraulic Shearing Machine
A Hydraulic Shearing Machine is a powerful industrial tool designed to cut sheet metal and metal plates with high precision and minimal deformation. It works like a heavy-duty pair of scissors where hydraulic pressure drives a moving blade downward against a fixed blade to shear metal accurately.
Machine Components
- Main Frame: Heavy-duty welded steel structure designed to handle high pressure without bending or vibration.
- Hydraulic Cylinders: Provide the force required to move the upper blade during the cutting process.
- Upper and Lower Blades: High-strength alloy steel blades used for accurate and clean cutting.
- Back Gauge System: Helps position the metal sheet accurately to achieve precise cutting dimensions.
- Hold-Down Clamps: Hydraulic clamps hold the metal sheet firmly to prevent movement during cutting.
- Control Panel: Allows operators to control stroke length, pressure, and machine operation.
Technical Specifications (Typical)
| Feature | Description |
|---|---|
| Cutting Capacity | 1mm to 25mm (depending on machine model) |
| Cutting Length | 1250mm to 6000mm |
| Operation Type | Hydraulic / CNC Controlled |
| Blade Material | High Carbon High Chrome Steel |
| Back Gauge Range | 500mm to 1000mm |
| Power Supply | Three Phase Industrial Power |
Key Features
- High Precision Cutting: Provides smooth and accurate cuts for metal sheets.
- Hydraulic Power System: Generates strong cutting force with stable operation.
- Adjustable Blade Gap: Ensures clean edges for different material thicknesses.
- Low Noise Operation: Hydraulic systems run quieter than mechanical shears.
- Overload Protection: Hydraulic system prevents damage when cutting thick materials.
Main Types of Hydraulic Shearing Machines
| Feature | Swing Beam Shear | Guillotine Shear |
|---|---|---|
| Blade Movement | Moves in an arc motion | Moves vertically in a straight line |
| Best For | Thin to medium sheet cutting | Heavy-duty thick plate cutting |
| Rake Angle | Fixed rake angle | Adjustable rake angle |
| Cut Quality | Good | Very high precision |
Common Applications
- Metal fabrication industries
- Automotive component manufacturing
- Sheet metal cutting for construction
- Industrial equipment manufacturing
- Fabrication workshops and steel processing plants
Safety Tip
Always ensure the metal sheet is properly aligned against the back gauge and that all hold-down clamps are securely engaged before starting the cutting process. Operators should wear proper safety equipment including gloves and eye protection.
